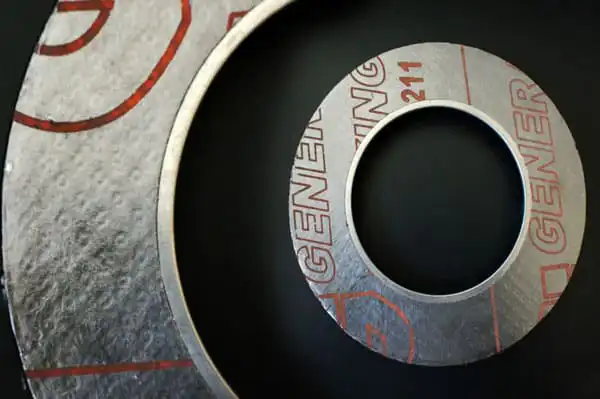

Euroseal® 211 Gasket in Graphite with AISI 316L Insert
The Euroseal® 211 gasket is one of the most reliable sealing solutions for complex industrial plants. It is manufactured with two sheets of low-sulfur graphite and a high-density tanged steel insert. The inner rim in AISI 316L performs a dual function: on one hand, it increases the rigidity of the gasket; on the other, it prevents fluid passage through the thickness, ensuring safety even under severe operating conditions.
Thanks to the intrinsic properties of graphite, Euroseal® 211 guarantees excellent adaptability to surfaces, even when flanges present roughness, scratches, or pitting.
This means reducing the risk of leakage and unplanned shutdowns, without issues of instability or buckling.
Main Technical Features
- T max: 450 °C
- P max: 120 bar
- P×T: 25,000 bar×°C
- Compressibility (ASTM F36): 41.8 %
These values make Euroseal® 211 a solid choice for fluid lines with variable loads and imperfect flanges.
Certifications
Euroseal® 211 is supported by key test references:
- BAM for oxygen reactivity
- ASTM D635 for combustion rate
- API 6FB for fire test
- ISO 15848 and VDI 2440 for fugitive emission verification.
These certifications attest to its quality and confirm its suitability for applications where safety is a top priority.
Sizes and Availability
The range covers diameters from DN 15 to DN 750, with packaging optimized to reduce procurement costs and streamline warehouse management.
Upon request, special or non-standard formats can be produced, with fast delivery ensured by CNC cutting departments and 24/7 production across General Packing Italy’s three manufacturing plants.
The Added Value of General Packing Italy
Choosing Euroseal® 211 means relying not only on a high-quality product but also on an industrial partner capable of guaranteeing continuity, technical expertise, and constant support.
General Packing Italy manufactures the entire Euroseal® line in-house, from pure mineral graphite to finished gaskets, and is certified ISO 9001:2015 and ISO 45001:2023.
Our technical-commercial team supports customers in every stage, from material selection to installation and on-site testing.
