Seal reconditioning system for exhausted or damaged gaskets | Euroseal® Silver

Extraordinary sealing power

  • Increase or restore sealing surface.
  • Easy to install.
  • Available in rolls and spools.
  • Extremely flexible.

Product Video

Category: Tag:

Reconditioning exhausted or damaged gaskets? Euroseal® Silver is the ready-to-use solution

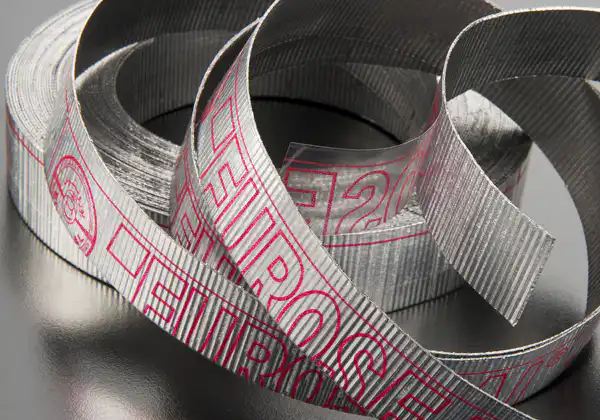

Euroseal® Silver is a seal reconditioning system for exhausted or damaged gaskets made of pure expanded mineral graphite, reinforced with an adhesive aluminum layer. Available in roll or tape format, it is the essential kit for any maintenance department dealing with worn gaskets, repairing damaged surfaces, or improve the sealing performance of new gaskets.

A universal, flexible, fire-safe product that can be applied in just a few minutes—even in emergency situations.

Why choose Euroseal® Silver – exhausted gasket reconditioning solution

Easily and safely applicable directly in the workshop, it is the simplest and most effective way to prevent potential equipment downtime when spare parts are unavailable, or to enhance the sealing capacity of a new gasket.

Why use it for gasket reconditioning

  • Minimizes plant downtime
  • Restores the integrity of damaged surfaces
  • Enhances the sealing performance of new gaskets
  • Conforms to any surface imperfection thanks to its flexibility
  • Can be applied in multiple layers to compensate for deep irregularities
  • Universal: compatible with most fluids and operating conditions

Formats

  • Rolls: width 1 m, thicknesses 0.4 mm / 0.8 mm, lengths 5 / 10 / 30 m
  • Coils: widths 12.7 / 25.4 cm, lengths 7.5 / 15 m
  • Also available in corrugated tape for large diameters

Instructions for use the seal material system for exhausted gaskets

  1. Cut the required portion with a cutter
  2. Remove the protective film
  3. Apply it to the gasket or surface to be reconditioned
  4. Trim the excess material and repeat on the inner circumference
  5. (Optional): apply a second layer if the surface is heavily damaged

Euroseal® Silver is your sealing first-aid kit

General Packing developed Euroseal® Silver to ensure operational continuity even in the absence of spare parts. It is the emergency material that every plant should keep in the workshop, always ready to intervene.

Datasheet

Datasheet download

Applications

  • Thermoelectrical power stations.
  • Petrolchemical industries.
  • Steel industries.
  • Chemical industries.

Technical FAQ

What is Euroseal® Silver?

Euroseal® Silver is a roll of pure expanded mineral graphite, adhesive-backed and reinforced with a thin fire-safe aluminum layer. It is designed to restore worn industrial gaskets and improve the sealing performance of new ones.

What are the main benefits of using Euroseal® Silver?

  • Excellent sealing even on irregular surfaces
  • Easy to install and apply
  • Flexible and resistant to high pressure and temperature
  • Reduction of warehouse stock (one product for many applications)
  • Low sulfur content (LSC), compliant with industrial standards

In which applications can Euroseal® Silver be used?

This graphite gasket kit is ideal for:

  • Worn or non-flat flanges
  • Boilers and heat exchangers
  • Chemical reactors and furnace doors
  • Flue gas ducts and air pipelines
  • Plant emergencies requiring immediate sealing restoration

What are the temperature and pressure limits?

Euroseal® Silver works within the following ranges:

  • Minimum temperature: -240 °C
  • Maximum temperature: 450 °C
  • Maximum pressure: 100 bar

In which formats is Euroseal® Silver available?

  • Standard rolls: 10 m and 30 m (width 1 m, thickness 0.4 and 0.8 mm)
  • Standard coils: 7.5 m and 15 m (widths 12.7 mm and 25.4 mm, thickness 0.4 mm)
  • Corrugated tape: for large-diameter gaskets, both new and refurbished

Is Euroseal® Silver compatible with all industrial fluids?

Thanks to the purity of graphite and its low sulfur content, Euroseal® Silver is chemically compatible with most industrial fluids. However, we recommend consulting General Packing’s technical team for specific applications.

Can Euroseal® Silver be used for plant emergencies?

Yes. Thanks to its easy application, it can be used in emergencies to quickly restore gasket sealing without long plant shutdowns.
